Full Line-up of Pluggable Transceivers

We deliver advanced optical modules for high-performance networks, combining thermal management and protective features for reliable, scalable connectivity. Our broad portfolio of optical transceivers serves data centers, HPC, telecom, and 5G. Backed by deep design and high-volume manufacturing expertise, we optimize reach, speed, form factor, and energy efficiency—leading innovations like Linear Pluggable Optics (LPO) and 200G per wavelength to power next-generation networking.

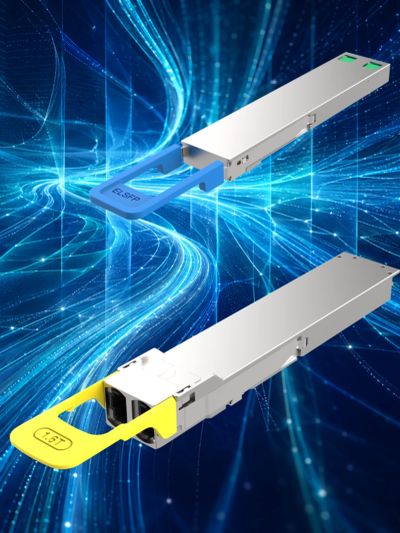

CPO/ELSFP: High-Power Optics for AI Cluster Interconnects

Optimized for AI data centers:  High output power and highly reliable light source designed for high-throughput, high energy efficient and low-latency fabrics connecting GPU/accelerator clusters. OIF ELSFP compliant with OIF defined blind-mate electro-optic connector. Environment RoHS10 compliant.

ELSFP 8PMF-VHP1-1311

  • Optical Interface: Eight 1311nm lasers with 2 sets of 4PMF per MT-12 ferrule
  • +21dBm optical output power per fiber
  • Form Factor: Compliant with OIF IA OIF-ELSFP-02.0
  • Operating case temperature: 15 to 65 deg C
  • Management Interface: Compliant with OIF IA ELSFP-CMIS-01.0
  • Environment: RoHS10 compliant
  • For AI data center applications

ELSFP 8PMF-UHP1-1311

  • Optical Interface: Eight 1311nm lasers with 2 sets of 4PMF per MT-12 ferrule
  • +24dBm optical output power per fiber
  • Form Factor: Compliant with OIF IA OIF-ELSFP-02.0
  • Operating case temperature: 15 to 65 deg C
  • Management Interface: Compliant with OIF IA ELSFP-CMIS-01.0
  • Environment: RoHS10 compliant
  • For AI data center applications

1.6T: Powering Hyper Scale Data centers, AI/ML Clusters, HPC

Push bandwidth per RU while maintaining operational power consumption and cost.  Designed to support Next-gen switch platforms and AI back-end fabrics with higher bandwidth density (224G-lane ecosystems) and high energy efficiency with the cutting-edge 3nm CMOS process.  Environment: RoHS10 compliant.

1.6T OSFP 2xDR4 500m

  • 2 x 800 Gigabit Ethernet Transceiver
  • Optical Interface: 106.25 GBd PAM4 per lane x 8, 1.6TBASE-DR8 / 2 x 800GBASE-DR4 / 4 x 400GBASE-DR2 / 8 x 200GBASE-DR1
  • Electrical Interface: 106.25 GBd PAM4 per lane x 8, 1.6TAUI-8 / 2 x 800GAUI-4 / 4 x 400GAUI-2 / 8 x 200GAUI-1
  • Reach: Up to 500 m over single mode fiber
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Connector Type: Dual MPO-12
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.3)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

1.6T OSFP 2xDR4-2 2km

  • 2 x 800 Gigabit Ethernet Transceiver
  • Optical Interface: 113.4375 GBd PAM4 per lane x 8, 1.6TBASE-DR8-2 / 2 x 800GBASE-DR4-2 / 4 x 400GBASE-DR2-2 / 8 x 200GBASE-DR1-2
  • Electrical Interface: 106.25 GBd PAM4 per lane x 8, 1.6TAUI-8 / 2 x 800GAUI-4 / 4 x 400GAUI-2 / 8 x 200GAUI-1
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Connector Type: Dual MPO-12
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.3)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

1.6T OSFP 2xFR4 2km

  • 2 x 800 Gigabit Ethernet Transceiver
  • Optical Interface: 113.4375 GBd PAM4 per lane x 8, 2 x 800GBASE-FR4
  • Electrical Interface: 106.25 GBd PAM4 per lane x 8, 2 x 800GAUI-4
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Connector Type: Dual Duplex LC
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.3)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

1.6T OSFP 2xDR4 LPO 500m

  • 2×800 Gigabit Ethernet Transceiver
  • Optical Interface: 106.25 GBd PAM4 per lane x 8, 1.6TBASE-DR8 / 2 x 800GBASE-DR4 / 4 x 400GBASE-DR2 / 8 x 200GBASE-DR1
  • Electrical Interface: 106.25 GBd PAM4 x 8 lane linear interface w/o DSP
  • Reach: Up to 500m over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.3)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

1.6T OSFP 2xDR4 LRO 500m

  • 2×800 Gigabit Ethernet Transceiver
  • Optical Interface: 106.25 GBd PAM4 per lane x 8, 1.6TBASE-DR8 / 2 x 800GBASE-DR4 / 4 x 400GBASE-DR2 / 8 x 200GBASE-DR1
  • Electrical Interface: 106.25 GBd PAM4 per lane x 8, (Tx) 1.6TAUI-8 / 2 x 800GAUI-4 / 4 x 400GAUI-2 / 8 x 200GAUI-1,  (Rx) 106.25 GBd PAM4 x 8 lane linear interface w/o DSP
  • Reach: Up to 500m over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.3)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

1.6T OSFP 2xFR4 LPO 2km

  • 2×800 Gigabit Ethernet Transceiver
  • Optical Interface: 113.4375 GBd PAM4 per lane x 8, 2 x 800GBASE-FR4
  • Electrical Interface: 106.25 GBd PAM4 x 8 lane linear interface w/o DSP
  • Reach: Up to 2 km over single mode fiber
  • Connector Type: Dual Duplex LC
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.3)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

1.6T OSFP 2xFR4 LRO 2km

  • 2×800 Gigabit Ethernet Transceiver
  • Optical Interface: 113.4375 GBd PAM4 per lane x 8, 2 x 800GBASE-FR4
  • Electrical Interface: 106.25 GBd PAM4 x 8 lane linear interface w/o DSP
  • Reach: Up to 2 km over single mode fiber
  • Connector Type: Dual Duplex LC
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.3)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

800G: Massive East to West Traffic within Mega Data Centers

Engineered for dense platforms with power and airflow constraints.  Next-gen network upgrades to support accelerating front-end east–west traffic and back-end GPU pod interconnect.  Un-retimed LPO (Linear Pluggable Optics) available for low power/low latency for AI clusters.  Environment RoHS10 compliant.

800G OSFP 2xDR4 500m

800G OSFP 2xDR4 500m

800G OSFP 2xDR4 500m

  • 2×400 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 2 x 400GBASE-DR4 / 8 x 100GBASE-DR
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 2×400GAUI-4 / 8 x 100GAUI-1
  • Reach: Up to 500m over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case tempe

  • 2×400 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 2 x 400GBASE-DR4 / 8 x 100GBASE-DR
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 2×400GAUI-4 / 8 x 100GAUI-1
  • Reach: Up to 500m over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

800G OSFP 2xDR4+ 2km

800G OSFP 2xDR4 500m

800G OSFP 2xDR4 500m

  •  8×100 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GBASE-FR1
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GAUI-1
  • Reach: Up to 2km over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management

  •  8×100 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GBASE-FR1
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GAUI-1
  • Reach: Up to 2km over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

800G OSFP 8xLR1 10km

800G OSFP 2xDR4 500m

  • 8×100 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GBASE-LR1
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GAUI-1
  • Reach: Up to 10km over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management

  • 8×100 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GBASE-LR1
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GAUI-1
  • Reach: Up to 10km over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

800G OSFP 2xFR4 2km

800G QSFP-DD 2xDR4 500m

  • 2×400 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 2 x 400GBASE-FR4
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 2×400GAUI-4
  • Reach: Up to 2 km over single mode fiber
  • Connector Type: Dual Duplex-LC
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management

  • 2×400 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 2 x 400GBASE-FR4
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 2×400GAUI-4
  • Reach: Up to 2 km over single mode fiber
  • Connector Type: Dual Duplex-LC
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface(CMIS 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

800G OSFP 2xLR4 10km

800G QSFP-DD 2xDR4 500m

800G QSFP-DD 2xDR4 500m

  • 2×400 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 2 x 400GBASE-LR4-6 / 2 x 400G-LR4-10
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 2×400GAUI-4
  • Reach: Up to 10 km over single mode fiber
  • Connector Type: Dual Duplex-LC
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0

  • 2×400 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 2 x 400GBASE-LR4-6 / 2 x 400G-LR4-10
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 2×400GAUI-4
  • Reach: Up to 10 km over single mode fiber
  • Connector Type: Dual Duplex-LC
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

800G QSFP-DD 2xDR4 500m

800G QSFP-DD 2xDR4 500m

800G QSFP-DD 2xDR4 500m

  • 2×400 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 2 x 400GBASE-DR4 / 8 x 100GBASE-DR
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 2×400GAUI-4 / 8 x 100GAUI-1
  • Reach: Up to 500m over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to QSFP-DD800 MSA hardware specification
  • Operating case

  • 2×400 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 2 x 400GBASE-DR4 / 8 x 100GBASE-DR
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 2×400GAUI-4 / 8 x 100GAUI-1
  • Reach: Up to 500m over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to QSFP-DD800 MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

800G QSFP-DD 2xDR4+ 2km

800G QSFP-DD 2xDR4+ 2km

800G QSFP-DD 2xDR4+ 2km

  • 8×100 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GBASE-FR1
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GAUI-1
  • Reach: Up to 2 km over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to QSFP-DD800 MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Manag

  • 8×100 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GBASE-FR1
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GAUI-1
  • Reach: Up to 2 km over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to QSFP-DD800 MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface(CMIS 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

800G QSFP-DD 8xLR1 10km

800G QSFP-DD 2xDR4+ 2km

800G QSFP-DD 2xDR4+ 2km

  • 8×100 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GBASE-LR1
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GAUI-1
  • Reach: Up to 10km over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to QSFP-DD800 MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Manag

  • 8×100 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GBASE-LR1
  • Electrical Interface: 53.125 GBd PAM4 per lane x 8, 8 x 100GAUI-1
  • Reach: Up to 10km over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to QSFP-DD800 MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

12

800G OSFP DR8 LPO 500m

800G QSFP-DD 2xDR4+ 2km

800G OSFP DR8 LPO 500m

  • 2×400 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 8x 100G-DR-LPO
  • Electrical Interface: 53.125 GBd PAM4 x 8 lane linear interface w/o DSP
  • Reach: Up to 500m over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Managem

  • 2×400 Gigabit Ethernet Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 8, 8x 100G-DR-LPO
  • Electrical Interface: 53.125 GBd PAM4 x 8 lane linear interface w/o DSP
  • Reach: Up to 500m over single mode fiber
  • Connector Type: Dual MPO-12
  • Form Factor: Compliant to OSFP MSA hardware specification
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

400G: The Backbone of Modern Cloud Fabrics

Balance bandwidth density and operability in leaf–spine deployments.  Integration guidance and documentation designed to reduce link bring-up cycles.  Leaf ↔ spine links in hyperscale DCs.  AI training clusters (rack-scale/row-scale).  Capacity expansion, with 400G stable volume node.  Environment RoHS10 compliant.

400G QSFP-DD DR4 500m

400G QSFP-DD 4xLR1 10km

400G QSFP-DD DR4 500m

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-DR4 / 4 x 100GBASE-DR
  • Electrical Interface: 26.5625 GBd PAM4 per lane x 8, 400GAUI-8
  • Reach: Up to 500m over single mode fiber
  • Form Factor: Compliant to QSFP-DD MSA hardware specification
  • Connector Type: MPO-12
  • Operating case temperature: 0 to

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-DR4 / 4 x 100GBASE-DR
  • Electrical Interface: 26.5625 GBd PAM4 per lane x 8, 400GAUI-8
  • Reach: Up to 500m over single mode fiber
  • Form Factor: Compliant to QSFP-DD MSA hardware specification
  • Connector Type: MPO-12
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 4.0)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

400G QSFP-DD DR4+ 2km

400G QSFP-DD 4xLR1 10km

400G QSFP-DD DR4 500m

  • 4×100 Gigabit Ethernet (4 x 100 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 4 x 100GBASE-FR1
  • Electrical Interface: 26.5625 GBd PAM4 per lane x 8, 4 X 100GAUI-2
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP-DD MSA hardware specification
  • Connector Type: MPO-12
  • Operating case temperature: 0 to 70

  • 4×100 Gigabit Ethernet (4 x 100 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 4 x 100GBASE-FR1
  • Electrical Interface: 26.5625 GBd PAM4 per lane x 8, 4 X 100GAUI-2
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP-DD MSA hardware specification
  • Connector Type: MPO-12
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 4.0)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

400G QSFP-DD 4xLR1 10km

400G QSFP-DD 4xLR1 10km

400G QSFP-DD 4xLR1 10km

  • 4×100 Gigabit Ethernet (4 x 100 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 4 x 100GBASE-LR1
  • Electrical Interface: 26.5625 GBd PAM4 per lane x 8, 4 X 100GAUI-2
  • Reach: Up to 10 km over single mode fiber
  • Form Factor: Compliant to QSFP-DD MSA hardware specification
  • Connector Type: MPO-12
  • Operating case temperature: 0 to 70

  • 4×100 Gigabit Ethernet (4 x 100 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 4 x 100GBASE-LR1
  • Electrical Interface: 26.5625 GBd PAM4 per lane x 8, 4 X 100GAUI-2
  • Reach: Up to 10 km over single mode fiber
  • Form Factor: Compliant to QSFP-DD MSA hardware specification
  • Connector Type: MPO-12
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 4.0)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

400G QSFP-DD FR4 2km

400G QSFP-DD LR4 10km

400G QSFP-DD 4xLR1 10km

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-FR4
  • Electrical Interface: 26.5625 GBd PAM4 per lane x 8, 400GAUI-8
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP-DD MSA hardware specification
  • Connector Type: Duplex LC
  • Operating case temperature: 0 to 70 deg C
  • Mana

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-FR4
  • Electrical Interface: 26.5625 GBd PAM4 per lane x 8, 400GAUI-8
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP-DD MSA hardware specification
  • Connector Type: Duplex LC
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 4.0)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

400G QSFP-DD LR4 10km

400G QSFP-DD LR4 10km

400G QSFP-DD LR4 10km

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-LR4-6 / 400G-LR4-10
  • Electrical Interface: 26.5625 GBd PAM4 per lane x 8, 400GAUI-8
  • Reach: Up to 6 / 10 km over single mode fiber
  • Form Factor: Compliant to QSFP-DD MSA hardware specification
  • Connector Type: Duplex LC
  • Operating case temperatu

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-LR4-6 / 400G-LR4-10
  • Electrical Interface: 26.5625 GBd PAM4 per lane x 8, 400GAUI-8
  • Reach: Up to 6 / 10 km over single mode fiber
  • Form Factor: Compliant to QSFP-DD MSA hardware specification
  • Connector Type: Duplex LC
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 4.0)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

400G QSFP112 DR4 500m

400G QSFP-DD LR4 10km

400G QSFP-DD LR4 10km

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-DR4 / 4 x 100GBASE-DR
  • Electrical Interface: 53.125 GBd PAM4 per lane x 4, 400GAUI-4
  • Reach: Up to 500m over single mode fiber
  • Form Factor: Compliant to QSFP112 hardware specification
  • Connector Type: MPO-12
  • Operating case temperature: 0 to 70 d

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-DR4 / 4 x 100GBASE-DR
  • Electrical Interface: 53.125 GBd PAM4 per lane x 4, 400GAUI-4
  • Reach: Up to 500m over single mode fiber
  • Form Factor: Compliant to QSFP112 hardware specification
  • Connector Type: MPO-12
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 4.0 or 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

400G QSFP112 DR4+ 2km

400G QSFP112 DR4+ 2km

400G QSFP112 DR4+ 2km

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-FR1
  • Electrical Interface: 53.125 GBd PAM4 per lane x 4, 400GAUI-4
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP112 hardware specification
  • Connector Type: MPO-12
  • Operating case temperature: 0 to 70 deg C
  • Management Int

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-FR1
  • Electrical Interface: 53.125 GBd PAM4 per lane x 4, 400GAUI-4
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP112 hardware specification
  • Connector Type: MPO-12
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 4.0 or 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

400G QSFP112 FR4 2km

400G QSFP112 DR4+ 2km

400G QSFP112 DR4+ 2km

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-FR4
  • Electrical Interface: 53.125 GBd PAM4 per lane x 4, 400GAUI-4
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP112 hardware specification
  • Connector Type: Duplex LC
  • Operating case temperature: 0 to 70 deg C
  • Management

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-FR4
  • Electrical Interface: 53.125 GBd PAM4 per lane x 4, 400GAUI-4
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP112 hardware specification
  • Connector Type: Duplex LC
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 4.0 or 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

400G QSFP112 LR4 10km

400G QSFP112 DR4+ 2km

400G QSFP112 LR4 10km

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-LR4-6 / 400G-LR4-10
  • Electrical Interface: 53.125 GBd PAM4 per lane x 4, 400GAUI-4
  • Reach: Up to 6 / 10 km over single mode fiber
  • Form Factor: Compliant to QSFP112 hardware specification
  • Connector Type: Duplex LC
  • Operating case temperature: 0

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
  • Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-LR4-6 / 400G-LR4-10
  • Electrical Interface: 53.125 GBd PAM4 per lane x 4, 400GAUI-4
  • Reach: Up to 6 / 10 km over single mode fiber
  • Form Factor: Compliant to QSFP112 hardware specification
  • Connector Type: Duplex LC
  • Operating case temperature: 0 to 70 deg C
  • Management Interface: Two-wire common management interface (CMIS 4.0 or 5.x)
  • Environment: RoHS10 compliant
  • For data center and telecom applications

100G: Built for Every Distance and Environment

Covers 100G connectivity needs from 100m to 80km across data center, campus, metro, and regional networks.  Supports multimode and single-mode deployments for flexible fiber infrastructure choices.

Includes short-reach options for high-density leaf-spine and in-rack switching environments. Environment RoHS10 compliant.

100G QSFP28 DR 500m

100G QSFP28 LR1 10km

100G QSFP28 DR 500m

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface: 53.125 GBd PAM4, 100GBASE-DR
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 /  26.5625 Gbps per lane x 4, 100GAUI-4
  • Support RS(544,514) FEC coder/decoder function
  • Reach: Up to 500 m over single mode fiber
  • Form Factor: Compliant to

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface: 53.125 GBd PAM4, 100GBASE-DR
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 /  26.5625 Gbps per lane x 4, 100GAUI-4
  • Support RS(544,514) FEC coder/decoder function
  • Reach: Up to 500 m over single mode fiber
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: Duplex LC
  • Low Power Consumption: 3.5 W max
  • Operating Case Temperature: 0 to 70 degC
  • Management Interface: Two-wire management interface protocol (SFF-8636)
  • Environmental: RoHS10 compliant
  • For data center, enterprise and telecom applications

100G QSFP28 FR1 2km

100G QSFP28 LR1 10km

100G QSFP28 DR 500m

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface: 53.125 GBd PAM4, 100GBASE-FR
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 /  26.5625 Gbps per lane x 4, 100GAUI-4
  • Support RS(544,514) FEC coder/decoder function
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface: 53.125 GBd PAM4, 100GBASE-FR
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 /  26.5625 Gbps per lane x 4, 100GAUI-4
  • Support RS(544,514) FEC coder/decoder function
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: Duplex LC
  • Low Power Consumption: 3.5 W max
  • Operating Case Temperature: 0 to 70 degC
  • Management Interface: Two-wire management interface protocol (SFF-8636)
  • Environmental: RoHS10 compliant

100G QSFP28 LR1 10km

100G QSFP28 LR1 10km

100G QSFP28 CWDM4 2km

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface: 53.125 GBd PAM4, 100GBASE-LR
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 /  26.5625 Gbps per lane x 4, 100GAUI-4
  • Support RS(544,514) FEC coder/decoder function
  • Reach: Up to 10 km over single mode fiber
  • Form Factor: Compliant to

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface: 53.125 GBd PAM4, 100GBASE-LR
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 /  26.5625 Gbps per lane x 4, 100GAUI-4
  • Support RS(544,514) FEC coder/decoder function
  • Reach: Up to 10 km over single mode fiber
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: Duplex LC
  • Low Power Consumption: 3.5 W max
  • Operating Case Temperature: 0 to 70 degC
  • Management Interface: Two-wire management interface protocol (SFF-8636)
  • Environmental: RoHS10 compliant
  • For data center, enterprise and telecom applications

100G QSFP28 CWDM4 2km

100G QSFP28 LR4/OTU4 10km

100G QSFP28 CWDM4 2km

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface:  25.78125 Gbps per lane x 4, CWDM4 MSA
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: Duplex

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface:  25.78125 Gbps per lane x 4, CWDM4 MSA
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4
  • Reach: Up to 2 km over single mode fiber
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: Duplex LC
  • Low Power Consumption: 3.5 W max
  • Operating Case Temperature: 0 to 70 degC
  • Management Interface: Two-wire management interface protocol (SFF-8636)
  • Environmental: RoHS10 compliant
  • For data center, enterprise and telecom applications

100G QSFP28 LR4 DML 10km

100G QSFP28 LR4/OTU4 10km

100G QSFP28 LR4/OTU4 10km

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface:  25.78125 Gbps per lane x 4, 100GBASE-LR4
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4
  • Reach: Up to 10 km over single mode fiber
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: Dup

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface:  25.78125 Gbps per lane x 4, 100GBASE-LR4
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4
  • Reach: Up to 10 km over single mode fiber
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: Duplex LC
  • Low Power Consumption: 3.5 W max
  • Operating Case Temperature: 0 to 70 degC
  • Management Interface: Two-wire management interface protocol (SFF-8636)
  • Environmental: RoHS10 compliant
  • For data center, enterprise and telecom applications

100G QSFP28 LR4/OTU4 10km

100G QSFP28 LR4/OTU4 10km

100G QSFP28 LR4/OTU4 10km

  • 100 Gigabit Ethernet & OTU4 Transceiver
  • Data Rate: 103.125 Gbit/s & 111.810 Gbit/s Dual Rate
  • Optical Interface:  25.78125 Gbps per lane x 4, 100GBASE-LR4 / 27.95 Gbps per lane x 4, ITU-T G.959.1 4I1-9D1F
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 / 27.95 Gbps per lane x 4, CEI-28G-VSR
  • Reach: Up to 10 km over single mode fiber
  • For

  • 100 Gigabit Ethernet & OTU4 Transceiver
  • Data Rate: 103.125 Gbit/s & 111.810 Gbit/s Dual Rate
  • Optical Interface:  25.78125 Gbps per lane x 4, 100GBASE-LR4 / 27.95 Gbps per lane x 4, ITU-T G.959.1 4I1-9D1F
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 / 27.95 Gbps per lane x 4, CEI-28G-VSR
  • Reach: Up to 10 km over single mode fiber
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: Duplex LC
  • Low Power Consumption: 4.0 W max
  • Operating Case Temperature: 0 to 70 degC
  • Management Interface: Two-wire management interface protocol (SFF-8636)
  • Environmental: RoHS10 compliant
  • For data center, enterprise and telecom applications

100G QSFP28 ZR4 80km

100G QSFP28 ZR4 80km

100G QSFP28 ZR4 80km

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface:  25.78125 Gbps per lane x 4, ZR4
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4
  • Reach: Up to 80 km over single mode fiber
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: Duplex LC
  • Low

  • 100 Gigabit Ethernet Single Protocol Transceiver
  • Data Rate: 103.125 Gbit/s Single Rate
  • Optical Interface:  25.78125 Gbps per lane x 4, ZR4
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4
  • Reach: Up to 80 km over single mode fiber
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: Duplex LC
  • Low Power Consumption: 5.5 W max
  • Operating Case Temperature: 0 to 70 degC
  • Management Interface: Two-wire management interface protocol (SFF-8636)
  • Environmental: RoHS10 compliant
  • For data center, enterprise and telecom applications

100G QSFP28 SR4 100m

100G QSFP28 ZR4 80km

100G QSFP28 ZR4 80km

  • 100 Gigabit & 40 Gigabit Ethernet Transceiver
  • Data Rate: 103.125 Gbit/s & 41.25 Gbit/s Dual Rate
  • Optical Interface:  25.78125 Gbps per lane x 4, 100GBASE-SR4 /  10.3125 Gbps per lane x 4, 40GBASE-SR4
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 /  10.3125 Gbps per lane x 4, XLAUI-4
  • Reach: Up to 100m/OM4, 70m/OM3 (100GbE), 150m/OM4

  • 100 Gigabit & 40 Gigabit Ethernet Transceiver
  • Data Rate: 103.125 Gbit/s & 41.25 Gbit/s Dual Rate
  • Optical Interface:  25.78125 Gbps per lane x 4, 100GBASE-SR4 /  10.3125 Gbps per lane x 4, 40GBASE-SR4
  • Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 /  10.3125 Gbps per lane x 4, XLAUI-4
  • Reach: Up to 100m/OM4, 70m/OM3 (100GbE), 150m/OM4, 100m/OM3 (40GbE)
  • Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)
  • Connector Type: MPO-12
  • Low Power Consumption: 2.5 W max
  • Operating Case Temperature: 0 to 70 degC
  • Management Interface: Two-wire management interface protocol (SFF-8636)
  • Environmental: RoHS10 compliant
  • For data center, enterprise and telecom applications

Cambridge Photonics Technologies, Inc.

2445 Augustine Dr, Suite 150, Santa Clara, CA 95054

408-609-5227

Copyright © 2026 - All Rights Reserved.

 Privacy and Cookie Statement

This website uses cookies.

We use cookies to analyze website traffic and optimize your website experience. By accepting our use of cookies, your data will be aggregated with all other user data.

DeclineAccept
